Frequency Hopping IP Mesh Networking 300-1400Mhz Drone Robot Mesh Link
Description:

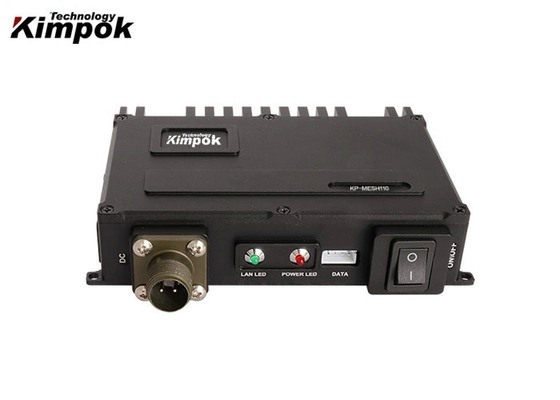

KP-MESH110 is a new robust Ethernet wireless transceiver radio from Kimpok Technology, special designed for N-LOS (Non line of sight) wireless IP MESH communication. It provides complete bi-directional video data IP networks transmission in complex environment, work as PTP communication and PTMP self-organized networking, each mesh group can access up to 32 nodes. Since its OFDM modulation with narrow band technology that able to extend the cover range and better diffraction even in moving conditions.
As its very small size, lightweight and bridge capacities, which is ideal for motion surveillance with high quality image and emergency communication. Widely apply in tactical applications like law enforcement, public security and protection, police, army, fire control, emergency areas etc.
Main Features
· Up to 36dBm of output power
· Multi link wireless communication
· Wireless MESH network,bridge and PTZ control combination
· Transmit rate can be up to 96Mbps;
· Long range full duplex and NLOS telecommunication support
· Good diffraction and anti-interference;
· High security with encryption 256 bits;
· Small dimension, light weight,heat dissipation of aluminum case;
· Highly integrated modular combination design;
· Software configured, can see the topography
Specifications
| Frequency |
300-2500MHz available
Please select a 100MHz span in between them. |
| Bandwidth |
5M/10M/20M/40MHz (Adjustable) |
| RF power |
30dBm (33dBm/36dBm Optional) |
| Sensitivity |
-102dBm maximal |
| Mode |
Frequency hopping (LTE) |
| Network node |
Up to 32 nodes |
| Working voltage |
DC 12V |
| Working current |
1.2A |
| Working temperature |
-40℃~ +65℃ |
| RF interface |
SMA * 2 |
| Interface |
TTL/RJ45 * 2 (for IP camera or other steam with Ethernet port) |
| Operation |
Manual via Web Software |
| Dimension |
131*103*29mm |
| Weight |
460g |
| Distance (30dBm) |
1~1.5km LOS on ground level
500m NLOS on ground level
15~20km LOS from UAV to ground station |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
