4 Channel COFDM HD Video Transmitter with 17 Monitor 1080P

Name: 4 Channel COFDM HD Video Transmitter with 17 Monitor 1080P
Brand: Kimpok Technology Co., Ltd
SKU: Se trata de un sistema de control de las emisiones.
Price: 145.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	Kimpok
Certificación:	CE Cerfication
Número de modelo:	Se trata de un sistema de control de las emisiones.

Información detallada

Lugar de origen:

PORCELANA

Nombre de la marca:

Kimpok

Certificación:

CE Cerfication

Número de modelo:

Se trata de un sistema de control de las emisiones.

resolución de video:

Admite video HD de 1080p/720p para monitoreo claro y de alta calidad

Ayuda del canal:

4 canales de video simultáneos para vigilancia de ubicación múltiple

Tipo de modulación:

COFDM 2K garantiza la recepción de señal estable en entornos de NLOS

Monitor:

Pantalla LCD Samsung de 17 pulgadas incorporada para visualización en tiempo real en el lugar

Encripción de datos:

Cifrado AES 128/256 bits para videos seguros y transmisión de audio

Interfaces de señal:

Admite RS232/RS485, HDMI, CVBS y salida HD-SDI

Resaltar:

High Light

Resaltar:

4 channel COFDM video transmitter

COFDM HD video transmitter with monitor

1080P COFDM video transmitter

Información sobre el comercio

Cantidad de orden mínima:

100

Precio:

Negociable

Detalles de empaquetado:

Embalaje estándar internacional

Tiempo de entrega:

7-15 días de trabajo

Condiciones de pago:

L/C, Western Union, PayPal

Capacidad de la fuente:

3.000 piezas por mes

Descripción del producto

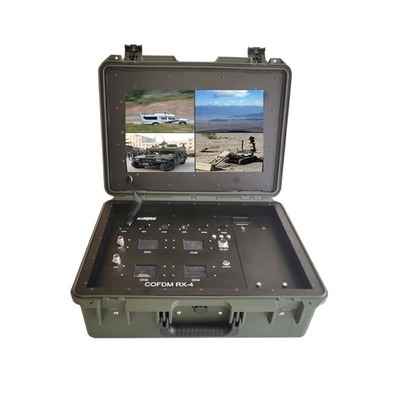

4 Channel COFDM HD Video Transmitter and Receiver with 17 Monitor 1080P Full HD

Product Introduction

The KP-DRB04 4-Channel COFDM HD Video Transmitter & Receiver is an advanced outdoor wireless AV solution designed for real-time high-definition video monitoring. Featuring 1080P/720P resolution and a built-in 17-inch Samsung LCD monitor, this system supports multi-channel video reception, high-speed mobile NLOS (Non Line-of-Sight) transmission, and secure AES encryption. With modular design and built-in 60GB SSD memory (expandable to 1TB), it ensures continuous 48-hour recording and reliable performance in harsh environments. Ideal for outdoor surveillance, mobile command, and professional video monitoring applications.

Key Features

Supports 1080P/720P high-definition video resolution with MPEG-2 compression
4-channel simultaneous video reception and recording
Built-in 17" Samsung LCD monitor for on-site monitoring
60GB SSD memory (expandable to 1TB) with 48-hour continuous recording
Supports RS232/RS485 and AV signal transmission simultaneously
AES user-defined password encryption for secure video and audio transmission
Adjustable working frequency, bandwidth, and RF power for flexible deployment
COFDM modulation ensures stable, high-speed NLOS reception
NTSC/PAL auto-adaptation for global compatibility
Customizable HD-SDI/HDMI output interface

Advantages

High Performance: Delivers stable, high-quality HD video in outdoor and mobile environments
Multi-Channel Capability: Supports 4 simultaneous channels, ideal for monitoring multiple locations
Secure Transmission: AES 128/256-bit encryption prevents unauthorized access
Versatile Integration: Compatible with RS232/RS485 and AV systems
Long Recording Time: Built-in battery supports up to 48 hours continuous recording
Rugged Design: Works reliably in extreme temperatures (-30°C to 70°C)
Flexible Installation: Modular and compact design simplifies setup in vehicles, ships, or outdoor stations

Applications

Outdoor surveillance and security monitoring
Mobile command vehicles for law enforcement or emergency response
Airborne or vehicle-mounted video transmission
Maritime and coastal monitoring systems
Special operations in mines, ports, and industrial sites
Traffic monitoring and emergency response systems

Technical Specifications

Category	Specification
Video Resolution	1080P / 720P
Channels	4 simultaneous channels
Modulation	COFDM 2K
Frequency	300MHz-800MHz / 1.2GHz / 2.4GHz / 5.8GHz (optional)
RF Input Level	-105dBm ~ -20dBm
RF Interface	N(F) connector
Video Output	HDMI / CVBS / HD-SDI (customizable)
Data Interface	RS232 / RS485 / TTL, 1200~115200bps
Bandwidth	2 / 2.5 / 4 / 8 MHz (adjustable)
Constellation	QPSK, 16QAM
FEC Options	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
Audio Output	Analog stereo L/R channels
Data Encryption	AES 128/256 bits
Built-in Memory	60GB SSD (expandable to 1TB)
Battery Capacity	30,000mAh, supports 4ch 48-hour recording
Monitor	17-inch Samsung LCD
Power Supply	AC220V ±20V / DC14-16V
Operating Temperature	-30°C to 70°C
Size	520 × 430 × 210 mm
Weight	22 kg
