AKK Alpha5 5.8-6.0GHz FPV Video Transmitter 5W with Smart Audio

Name: AKK Alpha5 5.8-6.0GHz FPV Video Transmitter 5W with Smart Audio
Brand: Kimpok Technology Co., Ltd
SKU: Alfa5
Price: 145.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	Kimpok
Certificación:	CE Cerfication
Número de modelo:	Alfa5

Información detallada

Lugar de origen:

PORCELANA

Nombre de la marca:

Kimpok

Certificación:

CE Cerfication

Número de modelo:

Alfa5

Rango de frecuencia:

5.8-6.0GHz

potencia de salida:

1W/2W/3W/5W conmutable

Protocolo de vídeo:

Transmisión analógica de FPV

Audio inteligente:

Compatible

Enfriamiento:

Ventilador incorporado y disipador térmico

Mostrar:

Pantalla digital LED

Voltaje de entrada:

7V-26V

Peso:

28 gramos

Resaltar:

High Light

Resaltar:

5.8GHz FPV video transmitter

6.0GHz VTX with Smart Audio

5W FPV transmitter with warranty

Información sobre el comercio

Cantidad de orden mínima:

100

Precio:

Negociable

Detalles de empaquetado:

Embalaje estándar internacional

Tiempo de entrega:

7-15 días de trabajo

Condiciones de pago:

L/C, Western Union, PayPal

Capacidad de la fuente:

3.000 piezas por mes

Descripción del producto

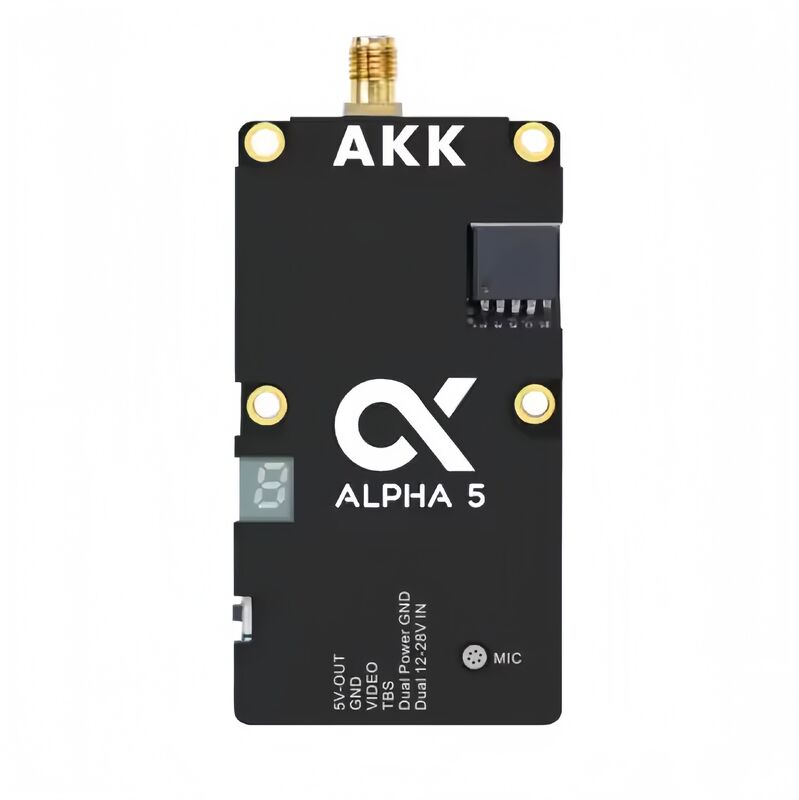

AKK 5.8-6.0GHz Alpha5 FPV Video Transmitter with Smart Audio for Long Range Drones

Product Overview

The AKK Alpha 5 is a high-performance 5.8-6.0GHz analog FPV video transmitter (VTX) designed for long-range and high-interference environments. With up to 5W switchable output power and a built-in cooling fan with heatsink, it ensures stable and reliable video transmission during extended flights.

Key Features

Switchable power output: 1W / 2W / 3W / 5W
Supports Smart Audio for remote frequency and power adjustment
LED digital display for intuitive operation
Fan-embedded heatsink for efficient cooling
Stable frequency performance without signal drift
Wide voltage input for compatibility with various drone systems

Advantages

High 5W output power for long-distance flight
Stable signal transmission with low latency and clear video
Versatile use for racing, aerial photography, and industrial drones
Reliable design for extended operation

Applications

FPV racing drones
Long-range aerial photography drones
Industrial drone systems (mapping, inspection, monitoring)
Education and research platforms

Specification Table

Specification	Details
Frequency Range	5.8GHz - 6.0GHz
Output Power	1W / 2W / 3W / 5W switchable
Video Type	Analog video transmission
Audio Protocol	Smart Audio
Display	LED digital display
Cooling System	Built-in fan + aluminum heatsink
Input Voltage	DC 7V - 26V
Dimensions	Approx. 55mm × 35mm × 15mm
Weight	Approx. 28g
Connector Type	SMA / MMCX (optional)
